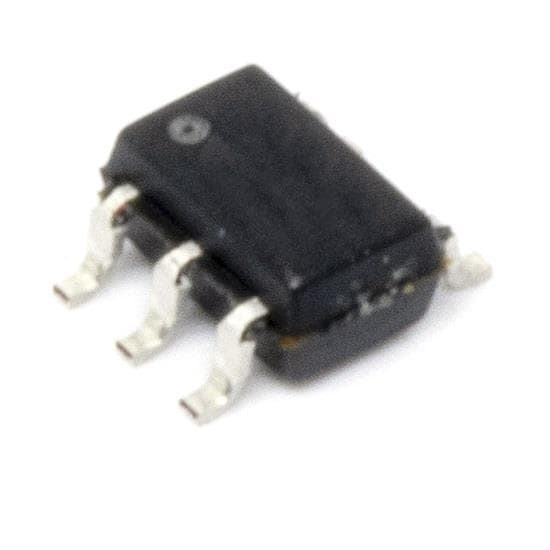

Description: Operational Amplifiers - Op Amps R 926-LMV721M7/NOPB
Operating Supply Current :: |
1.03 mA |
Ib - Input Bias Current :: |
0.26 uA at 5 V (Typ) |
Mounting Style :: |
SMD/SMT |
Minimum Operating Temperature :: |
- 40 C |
SR - Slew Rate :: |
5.25 V/us |
Supply Voltage - Max :: |
5.5 V |
Package / Case :: |
SC-70-5 |
Maximum Operating Temperature :: |
+ 85 C |
Supply Voltage - Min :: |
2.2 V |
Packaging :: |
Reel |
Output Current per Channel :: |
52.6 mA |
Product Category :: |
Operational Amplifiers - Op Amps |
Series :: |
LMV721-N |
GBP - Gain Bandwidth Product :: |
10 MHz |
Number of Channels :: |
1 Channel |
Vos - Input Offset Voltage :: |
3 mV |
Manufacturer :: |
Texas instruments |
Shutdown :: |
No Shutdown |
CMRR - Common Mode Rejection Ratio :: |
70 dB to 89 dB |
Operating Supply Current :: |
1.03 mA |
Ib - Input Bias Current :: |
0.26 uA at 5 V (Typ) |
Mounting Style :: |
SMD/SMT |
Minimum Operating Temperature :: |
- 40 C |
SR - Slew Rate :: |
5.25 V/us |
Supply Voltage - Max :: |
5.5 V |
Package / Case :: |
SC-70-5 |
Maximum Operating Temperature :: |
+ 85 C |
Supply Voltage - Min :: |
2.2 V |
Packaging :: |
Reel |
Output Current per Channel :: |
52.6 mA |
Product Category :: |
Operational Amplifiers - Op Amps |
Series :: |
LMV721-N |
GBP - Gain Bandwidth Product :: |
10 MHz |
Number of Channels :: |
1 Channel |
Vos - Input Offset Voltage :: |
3 mV |
Manufacturer :: |
Texas instruments |
Shutdown :: |
No Shutdown |
CMRR - Common Mode Rejection Ratio :: |
70 dB to 89 dB |
